The F-15 and F-16 are two of the most iconic and successful fighter aircraft ever developed by the United States. Both were designed during the Cold War era and have since played crucial roles in American and allied air forces around the world. Despite being produced by the same company—McDonnell Douglas (now part of Boeing) and General Dynamics (now Lockheed Martin), respectively—these two aircraft were conceived for different roles, resulting in key differences in design, performance, and capabilities. This article offers a comprehensive comparison of the F-15 and F-16 in terms of their design philosophy, technical specifications, avionics, combat roles, and operational history

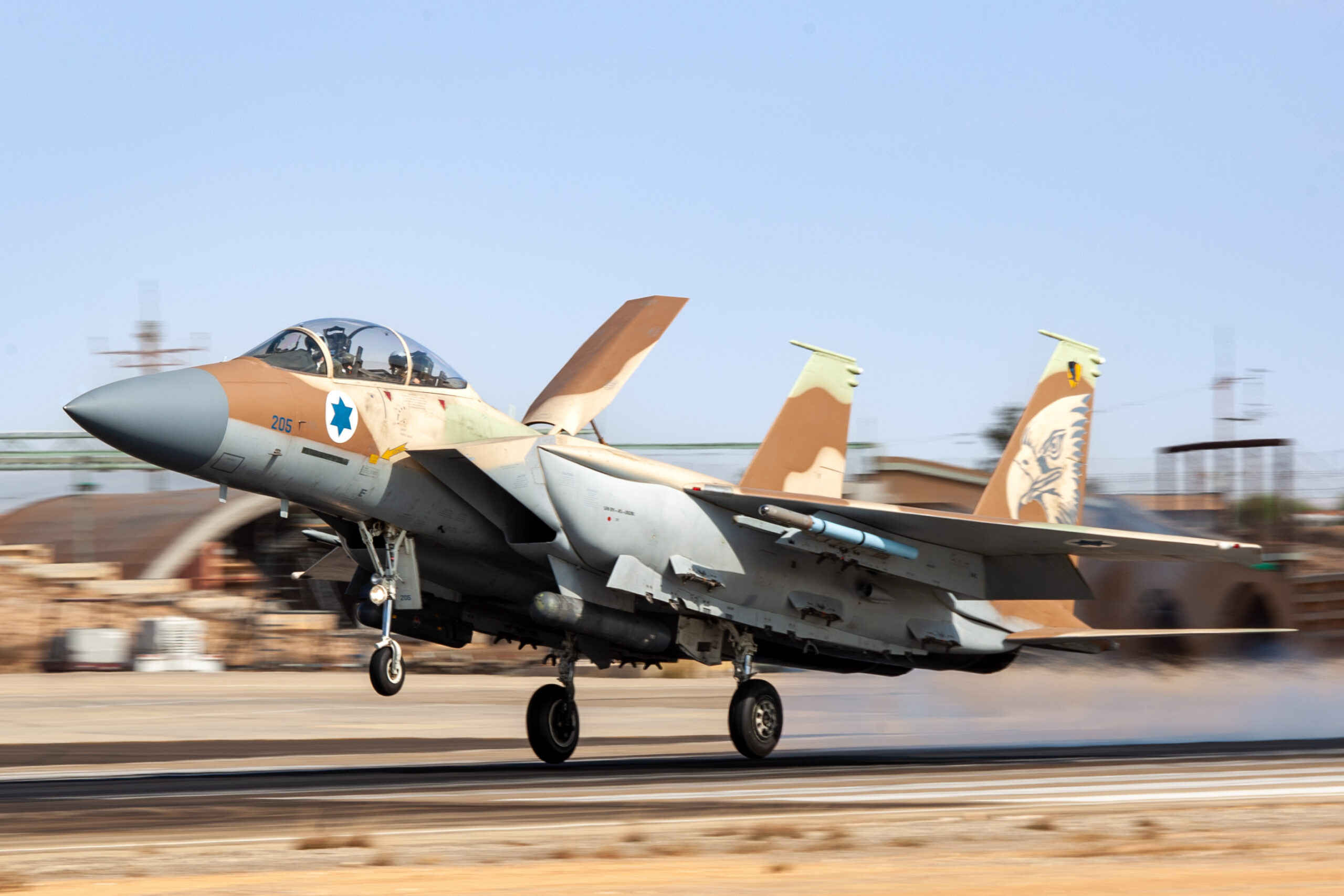

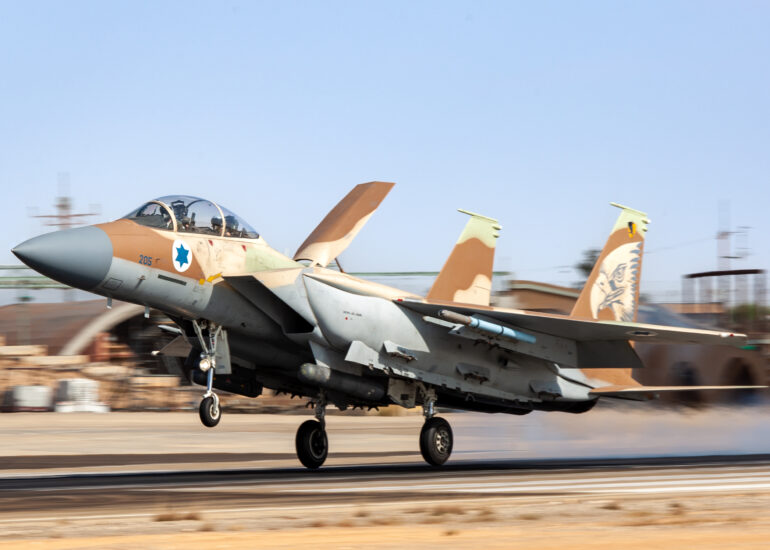

The F-15 was developed in response to the need for a superior air superiority fighter in the early 1970s, following lessons learned during the Vietnam War. The U.S. Air Force wanted a fighter that could dominate the skies against any opponent. The result was the F-15 Eagle, a twin-engine, all-weather tactical fighter capable of performing long-range and high-speed missions. Its design emphasized speed, power, and advanced radar capabilities, with a focus on gaining and maintaining air superiority.

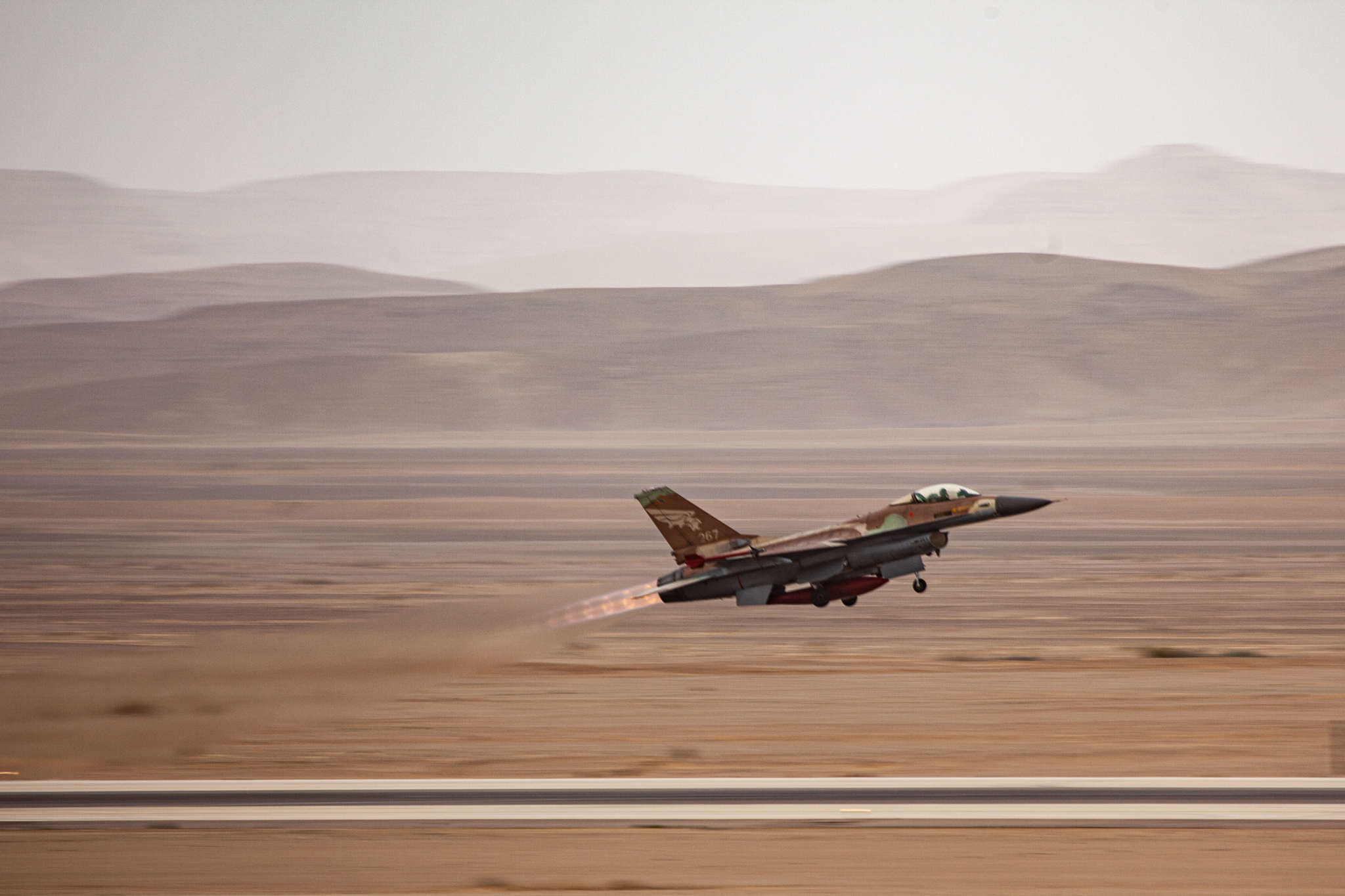

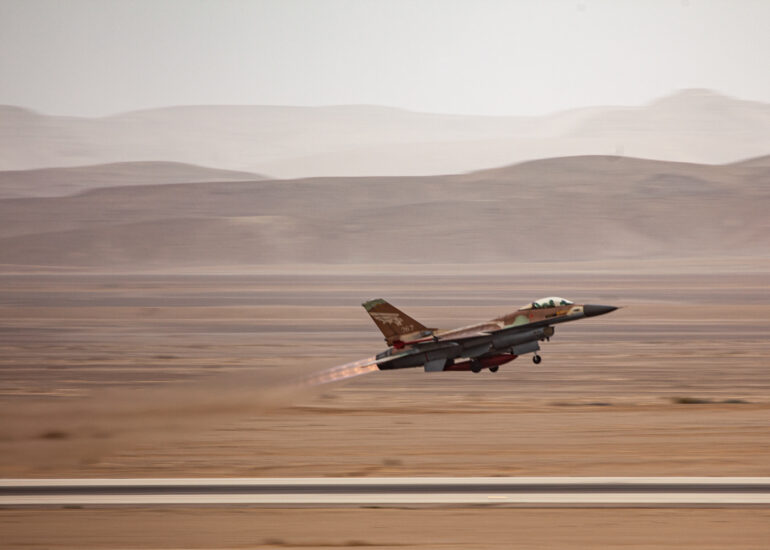

The F-16, on the other hand, was designed as a lighter, more affordable multirole fighter. Initiated through the Lightweight Fighter program, its development aimed to complement heavier fighters like the F-15 by providing a cost-effective and highly maneuverable platform for both air-to-air and air-to-ground missions. The F-16’s single-engine design, fly-by-wire system, and bubble canopy reflect its emphasis on agility, visibility, and versatility.
| Specification | F-15 Eagle | F-16 Fighting Falcon |
|---|---|---|
| Length | 63.8 ft (19.45 m) | 49.3 ft (15.06 m) |
| Wingspan | 42.8 ft (13.05 m) | 32.8 ft (10.0 m) |
| Height | 18.5 ft (5.63 m) | 16.0 ft (4.88 m) |
| Max Takeoff Weight | 68,000 lb (30,845 kg) | 42,300 lb (19,187 kg) |
| Engine(s) | Two Pratt & Whitney F100s | One Pratt & Whitney F100 or GE F110 |
The F-15 is significantly larger and heavier than the F-16. Its twin-engine configuration provides redundancy and superior thrust, while the F-16 relies on a single, powerful engine to remain lightweight and cost-effective.
| Performance Metric | F-15 Eagle | F-16 Fighting Falcon |
|---|---|---|
| Max Speed | Mach 2.5+ (approx. 1,875 mph) | Mach 2.0 (approx. 1,500 mph) |
| Combat Radius | ~1,000 mi (1,600 km) | ~340 mi (550 km) air-to-air |
| Ferry Range | ~3,000 mi (4,800 km) with tanks | ~2,200 mi (3,500 km) with tanks |
| Rate of Climb | 50,000 ft/min | 62,000 ft/min |
| Service Ceiling | 65,000 ft (19,812 m) | 50,000 ft (15,240 m) |
While the F-15 outperforms the F-16 in maximum speed, range, and ceiling, the F-16 is known for its exceptional climb rate and agility due to its lighter airframe and higher thrust-to-weight ratio.
The F-15 is equipped with powerful radar systems such as the AN/APG-63 and later the AN/APG-82 AESA radar, capable of detecting and tracking multiple targets at long ranges. Its advanced avionics suite includes electronic countermeasures (ECM), digital flight control systems, and integration with various air-to-air and air-to-ground munitions.
Originally fitted with the AN/APG-66 radar, later models of the F-16 now include the AN/APG-83 SABR AESA radar. While not as powerful as the F-15’s radar, the F-16’s avionics are optimized for multirole flexibility. The cockpit features a hands-on-throttle-and-stick (HOTAS) system and head-up display (HUD), offering excellent situational awareness.
| Feature | F-15 Eagle | F-16 Fighting Falcon |
|---|---|---|
| Hardpoints | 11 | 9 |
| Max Payload | ~23,000 lb (10,400 kg) | ~17,000 lb (7,700 kg) |
| Gun | M61A1 Vulcan 20mm | M61A1 Vulcan 20mm |
| Air-to-Air Missiles | AIM-7, AIM-9, AIM-120 | AIM-9, AIM-120 |
| Air-to-Ground | JDAM, GBU-series, AGM-series | JDAM, GBU-series, AGM-series |

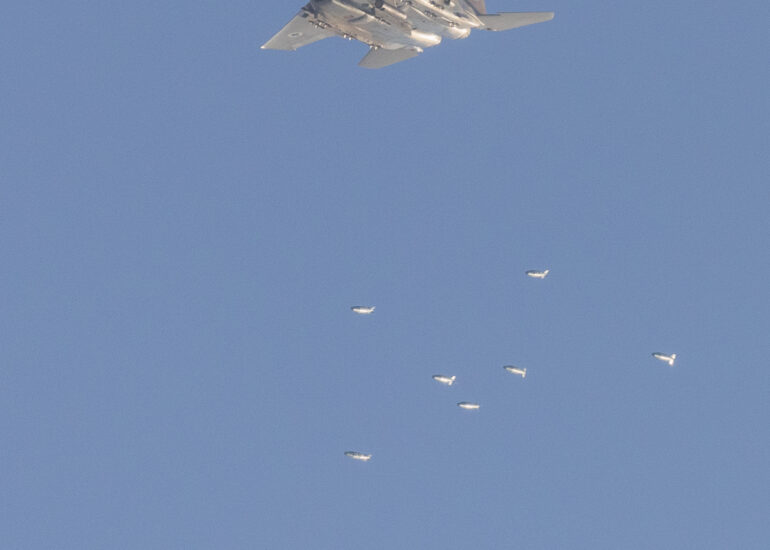

Both aircraft can carry a variety of precision-guided munitions, bombs, and missiles. The F-15, with its greater payload and range, is more suitable for long-range strike missions, while the F-16’s lighter frame makes it a nimble multirole platform suitable for close air support and interdiction missions.

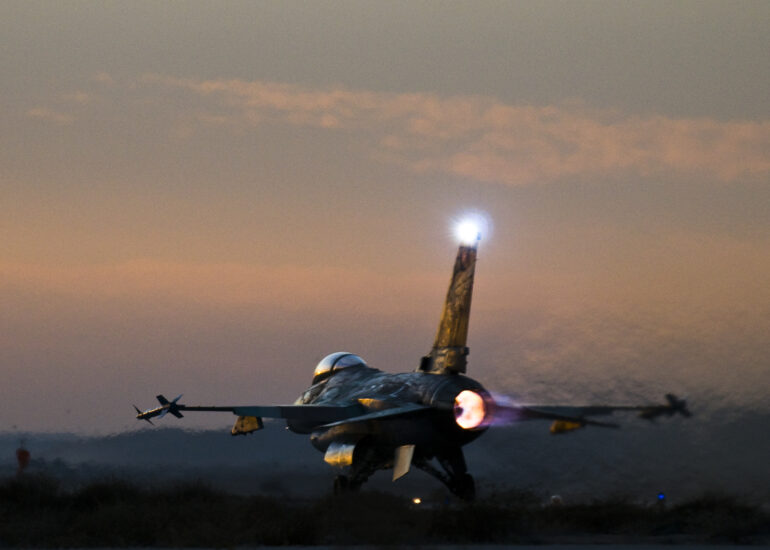

The F-16’s frameless bubble canopy, reclined pilot seat, and fly-by-wire flight control system give it excellent maneuverability and situational awareness. It is highly regarded for dogfighting and has an outstanding thrust-to-weight ratio, which enables impressive acceleration and turning capability.

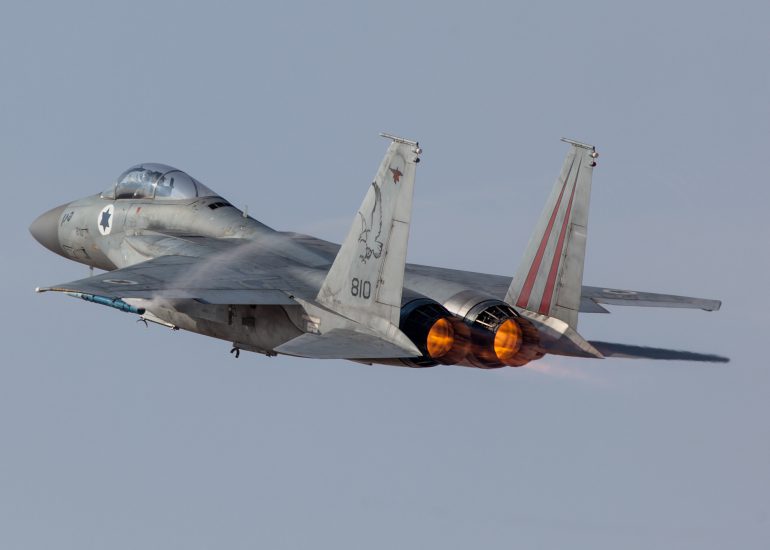

The F-15, while larger and heavier, also features a very high thrust-to-weight ratio (close to 1:1), and its large wings provide superb lift. It was designed to dominate in beyond-visual-range (BVR) combat but remains capable in close-in engagements.
Primary Role: Air superiority
Secondary Roles: Interdiction, ground strike (F-15E variant), defense suppression
Variants: F-15C/D (air superiority), F-15E Strike Eagle (multirole), F-15EX (latest upgrade with advanced avionics and weapons)
Primary Role: Multirole fighter
Secondary Roles: Close air support, air superiority, reconnaissance, SEAD (Suppression of Enemy Air Defenses)
Variants: F-16A/B (initial), F-16C/D (upgraded), F-16V (advanced avionics and AESA radar)
The F-15 excels in air-to-air dominance, while the F-16 provides greater flexibility across mission types, making it a true workhorse in many air forces.
Both aircraft have extensive combat histories with high mission success rates.
Never lost in air-to-air combat (over 100 kills with zero losses in aerial combat).
Used in Operation Desert Storm, Operation Allied Force, and recent conflicts in the Middle East.
Operated by U.S., Israel, Japan, Saudi Arabia, and others.
Participated in every major U.S. combat operation since the 1980s.
Used for air patrols, bombing missions, and support roles.
Operated by over 25 nations, including Israel, Turkey, South Korea, and NATO members.
Over 4,500 units produced, making it one of the most widely used combat aircraft in history.
| Factor | F-15 Eagle | F-16 Fighting Falcon |
|---|---|---|
| Unit Cost (modern) | ~$90–100 million (F-15EX) | ~$30–40 million (F-16V) |
| Operating Cost/hr | ~$29,000 | ~$22,000 |
The F-16 is significantly cheaper to procure and operate, which contributes to its widespread adoption. The F-15’s higher cost is justified by its superior range, power, and payload capabilities.
The F-15EX is the latest iteration of the Eagle, intended to complement fifth-generation fighters like the F-35 and F-22 by providing unmatched payload and range. It includes state-of-the-art avionics, electronic warfare systems, and open-architecture software.
The F-16, despite its age, continues to receive upgrades and remains in production. The F-16V variant brings the platform into the 21st century with AESA radar, advanced data links, and modern cockpit systems.
